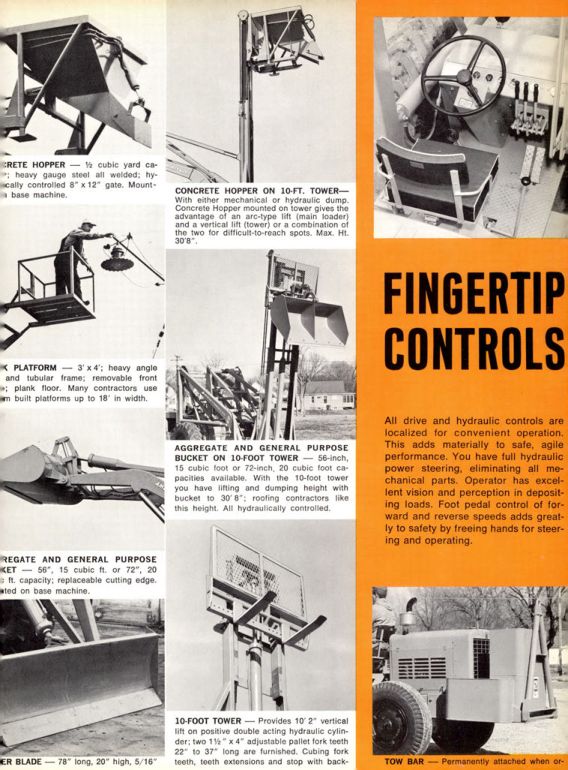

Masonry Magazine January 1967 Page. 41
CRETE HOPPER — 1½ cubic yard capacity; heavy gauge steel all welded; hydraulically controlled 8" x 12" gate. Mounts on base machine.
CONCRETE HOPPER ON 10-FT. TOWER- With either mechanical or hydraulic dump. Concrete Hopper mounted on tower gives the advantage of an arc-type lift (main loader) and a vertical lift (tower) or a combination of the two for difficult-to-reach spots. Max. Ht. 30'8".
PLATFORM — 3' x 4'; heavy angle and tubular frame; removable front plank floor. Many contractors use built platforms up to 18' in width.
AGGREGATE AND GENERAL PURPOSE KET — 56", 15 cubic ft. or 72", 20 cubic ft. capacity; replaceable cutting edge. Mounted on base machine.
FINGERTIP CONTROLS
All drive and hydraulic controls are localized for convenient operation. This adds materially to safe, agile performance. You have full hydraulic power steering, eliminating all mechanical parts. Operator has excellent vision and perception in depositing loads. Foot pedal control of forward and reverse speeds adds greatly to safety by freeing hands for steering and operating.
AGGREGATE AND GENERAL PURPOSE BUCKET ON 10-FOOT TOWER — 56-inch, 15 cubic foot or 72-inch, 20 cubic foot capacities available. With the 10-foot tower you have lifting and dumping height with bucket to 30'8"; roofing contractors like this height. All hydraulically controlled.
ER BLADE-78" long, 20" high, 5/16"
10-FOOT TOWER — Provides 10' 2" vertical lift on positive double acting hydraulic cylinder; two 1½" x 4" adjustable pallet fork teeth 22" to 37" long are furnished. Cubing fork teeth, teeth extensions and stop with back-
TOW BAR — Permanently attached when or-
