LULL

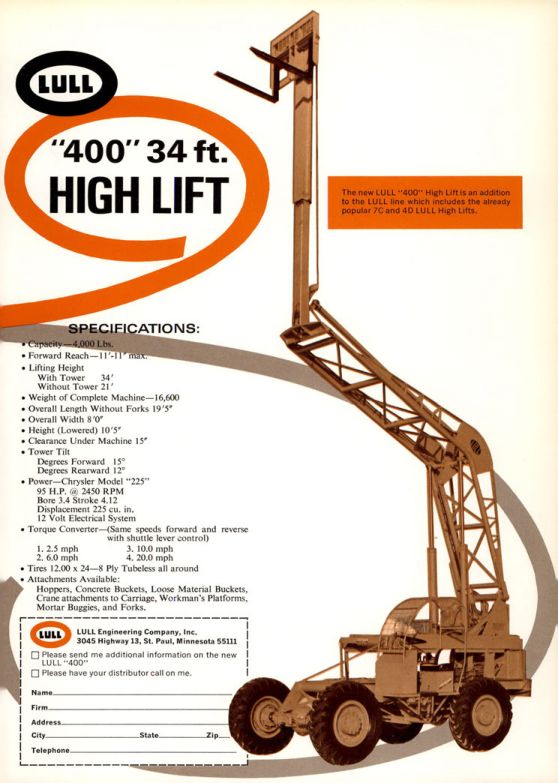

"400" 34 ft. HIGH LIFT
The new LULL "400" High Lift is an addition to the LULL line which includes the already popular 7C and 4D LULL High Lifts.
SPECIFICATIONS:
• Capacity-4,000 Lbs.
• Forward Reach-11-11 max.
• Lifting Height
With Tower 34'
Without Tower 21'
• Weight of Complete Machine-16,600
• Overall Length Without Forks 19'5"
• Overall Width 8'0"
• Height (Lowered) 10'5"
• Clearance Under Machine 15"
• Tower Tilt
Degrees Forward 15°
Degrees Rearward 12°
• Power-Chrysler Model "225" 95 Η.Ρ. @ 2450 RPM
Bore 3.4 Stroke 4.12
Displacement 225 cu. in.
12 Volt Electrical System
• Torque Converter-(Same speeds forward and reverse with shuttle lever control)
1. 2.5 mph
2. 6.0 mph
3. 10.0 mph
4. 20.0 mph
• Tires 12.00 x 24-8 Ply Tubeless all around
• Attachments Available:
Hoppers, Concrete Buckets, Loose Material Buckets, Crane attachments to Carriage, Workman's Platforms, Mortar Buggies, and Forks.
LULL
LULL Engineering Company, Inc.
3045 Highway 13, St. Paul, Minnesota 55111
